Pioneering large-format outdoor living
Caravan & Camper Awnings Designed on a Bigger Scale
Rugged 4x4 pioneered this purpose-built large-format awning size with the Max caravan and camper range released in 2025. Rather than adapting a standard vehicle awning, the range was created to deliver the extended coverage, mounting lengths and outdoor living space larger touring setups demand.
The Max range introduced a purpose-built awning format sized for caravans and campers, creating substantially more usable shelter than a typical vehicle awning.
- Max 540 coverage Large-format designs for extended outdoor living areas.
- Max 270 options Wrap-around shelter in 3.0m and 3.5m formats.
- Integrated lighting Selected models include hard-wired, dimmable LED lighting.
- Expandable systems Add model-specific walls, gutters, brackets and legs.
What Makes the Max Range Different?
These awnings are designed around the scale and layout of caravans and campers, where mounting length, door clearance and outdoor living space differ substantially from a standard 4WD installation.
Purpose-Built Caravan Scale
Longer format options help create shelter that feels proportionate to a caravan or camper rather than leaving the outdoor living area under-covered.
More Usable Living Space
Choose extended 540-style coverage or a large 270° wrap-around to protect seating, cooking and entry areas within one connected setup.
A Complete Modular System
Compatible wall kits, rain gutters, quick-fit brackets, legs and accessories allow the shelter to be configured around the selected Max model.
Compare Caravan & Camper Awning Formats
Start with your caravan or camper dimensions, the available structural mounting area and the shape of shelter you want. Do not select on overall length alone.
| Model | Listed size or coverage | Listed weight | Useful starting point | Product |
|---|---|---|---|---|
| Mini Max 540 | 2.3m model | Approx. 38kg | Smaller campers and compact large-coverage setups | View Mini Max 540 |

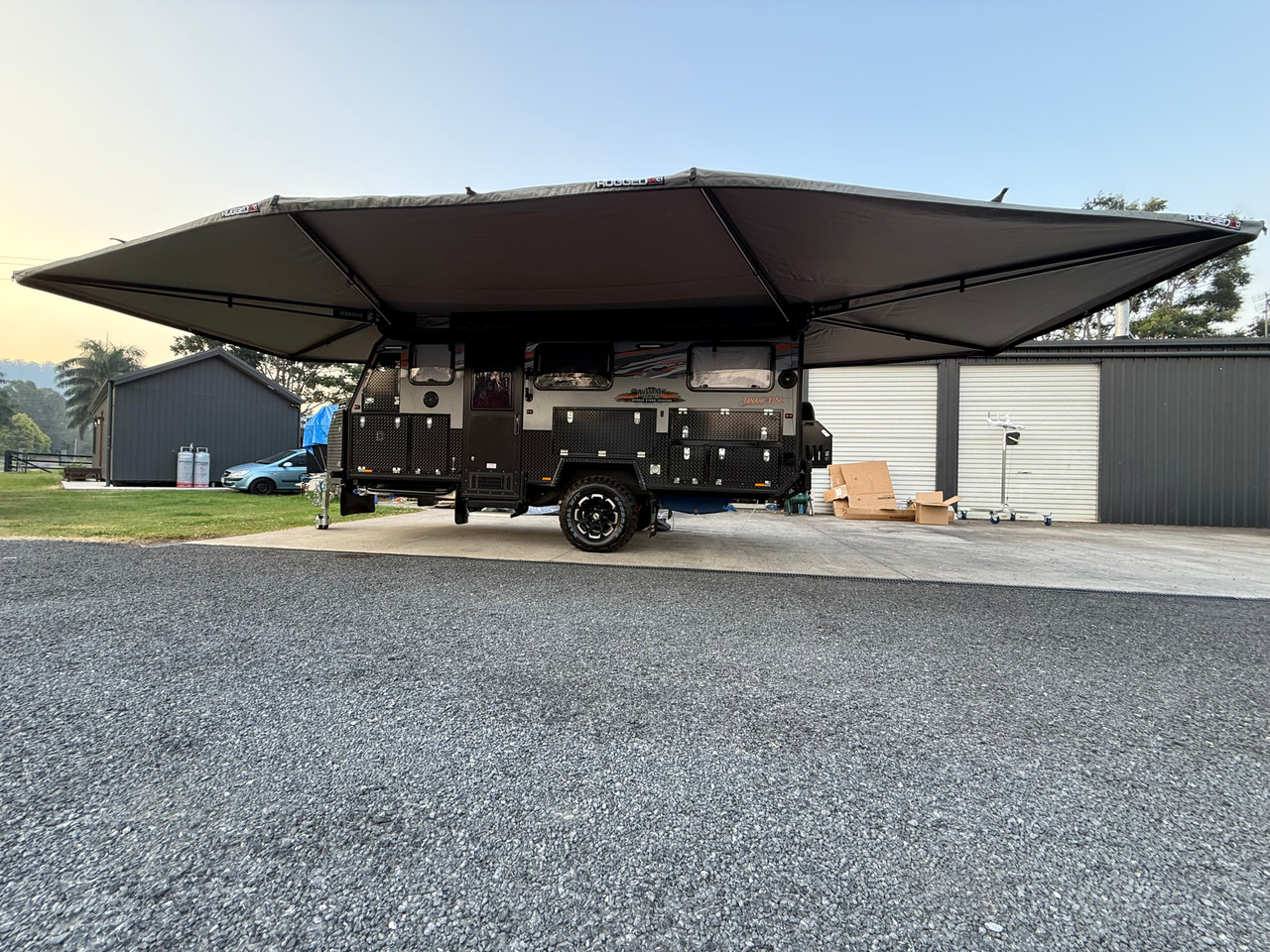

| Max 540 | 3.92m, 4.22m, 4.52m or 4.82m | Approx. 49.5–52kg | Large caravan and camper outdoor living areas | View Max 540 |
| Max 3.0m 270° | 18.35m² coverage | Confirm product | Small-to-medium caravans and campers | View Max 3.0m 270° |
| Max 3.5m 270° | 19.55m² coverage | Confirm product | Larger wrap-around caravan or camper shelter | View Max 3.5m 270° |
Specifications shown are based on the current product listings and may change. Confirm dimensions, weight, mounting requirements, electrical requirements, inclusions and accessory compatibility before ordering.
Plan the Installation Before You Order
Large-format awnings require more installation planning than a conventional pull-out awning. Send the Rugged team your caravan or camper make, model and measurements if you are unsure.
- Measure the complete mounting area Check straight mounting length, structural attachment points and clearances around doors, windows, rooflines and hatches.
- Allow for the full deployment shape Confirm the arms, fabric and walls can open without contacting bodywork, accessories, steps or nearby campsite obstacles.
- Confirm structural capacity The mounting surface and hardware must be suitable for the awning's weight and operational loads. Do not assume an existing cassette-awning mount is compatible.
- Plan power for integrated lighting Selected models include hard-wired lights and require a suitable power connection as specified on the product page.

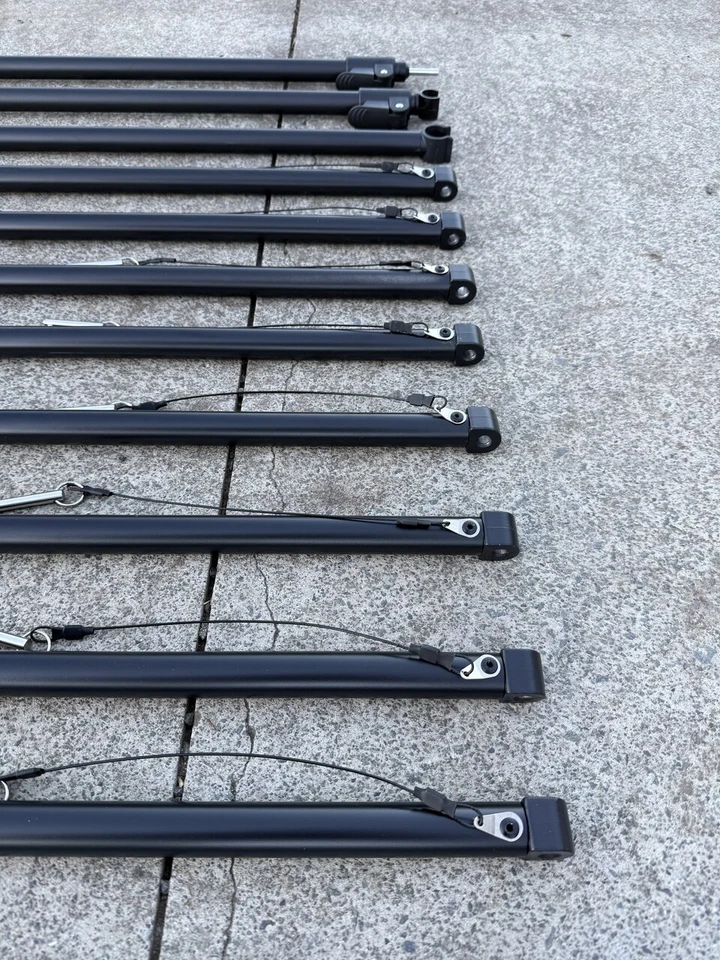

- Use model-specific accessories Match wall kits, rain gutters, brackets and legs to the exact Max or Mini Max model and size.
Build a Complete Max Awning System
Select accessories by exact model and size so walls, drainage and mounting components align correctly.
Caravan & Camper Awning FAQs
What makes Rugged 4x4 caravan and camper awnings different?
Rugged 4x4 pioneered this purpose-built large-format awning size when the Max caravan and camper range launched in 2025. The range was designed around longer touring bodies and larger outdoor living areas rather than simply adapting a standard vehicle awning.
What is the difference between Max 540 and Max 270 awnings?
Max 540 awnings are designed to create extended shelter around a large outdoor living area, with several long-body size options. Max 270 awnings wrap around part of the side and end of the caravan or camper. The best format depends on mounting space, doors and windows, campsite layout and the area you want covered.
How do I choose the right caravan awning size?
Measure the structurally suitable mounting area, not just the overall caravan length. Allow for doors, windows, hatches, roof curves and the awning's full deployment shape. Compare those measurements with the product specifications, then contact Rugged 4x4 with the caravan or camper make, model and dimensions if unsure.
Will a Max awning fit my caravan or camper?
Compatibility depends on available straight mounting length, structural attachment points, body shape, clearance and the selected mounting hardware. A caravan of the right overall length can still be unsuitable if doors, windows or roof construction interfere with installation. Confirm fit before ordering.
Can a Max awning replace my existing roll-out or cassette awning?
Possibly, but it should not be assumed. Existing mounting rails and attachment points may not suit the size, weight or operational loads of a Max awning. The old awning may also leave holes or require body repairs. Have the installation assessed before removal or purchase.
Should a caravan or camper awning be professionally installed?
Professional assessment and installation are strongly recommended for these large-format awnings unless the installer has appropriate fabrication and caravan-body experience. The Max 540 listing requires additional documentation for customer or third-party installation, so review the current product requirements before ordering.
Do I need to use all legs and guy ropes?

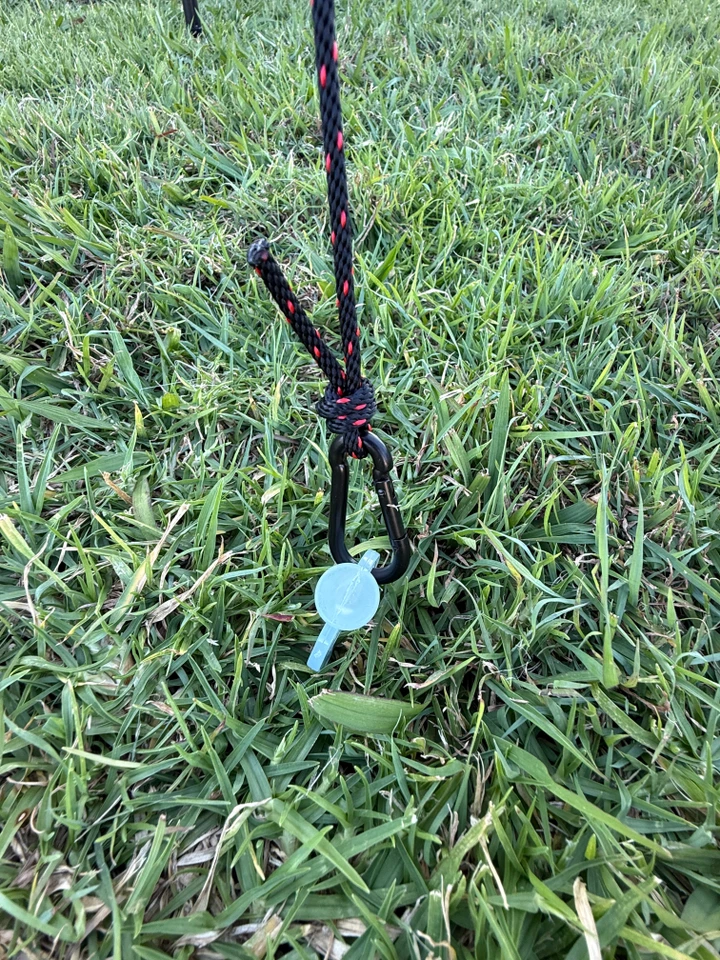

Follow the exact instructions for your model. Rugged 4x4 currently recommends using all supplied legs and tying down the Max 540 whenever it is deployed. Check anchors as conditions change, maintain fabric tension and runoff, and pack the awning away during severe weather or before leaving camp unattended.
Are Max caravan awnings waterproof and UV resistant?
Fabric specifications vary across the Max range. Current listings include UVE95+ fabric and AS4174 certification, with 300gsm or 320gsm polyester fabric depending on the model. Confirm water-resistance and care information on the individual listing, and maintain appropriate tension and runoff during use.
Can I add walls to a Max awning?
Yes, wall kits are available for selected Max 540, Mini Max and Max 270 awnings. Wall sections are model- and size-specific, so match the kit to the exact awning before ordering. Compatible walls can add privacy, airflow control and extra protection around the outdoor living area.
Do the caravan awnings include lights and power?
Selected Max and Mini Max models list integrated hard-wired, dimmable LED lighting and a supplied power cord. Lighting configuration and connection requirements vary by model, so plan a suitable power source and confirm the electrical specifications before installation.
Need help confirming fit?
Send the Rugged 4x4 team your caravan or camper make, model, body length and mounting-area measurements.
Product specifications, fabric ratings, dimensions, weights, installation requirements and accessory compatibility can change. Confirm the current product listing and installation requirements before purchase.
